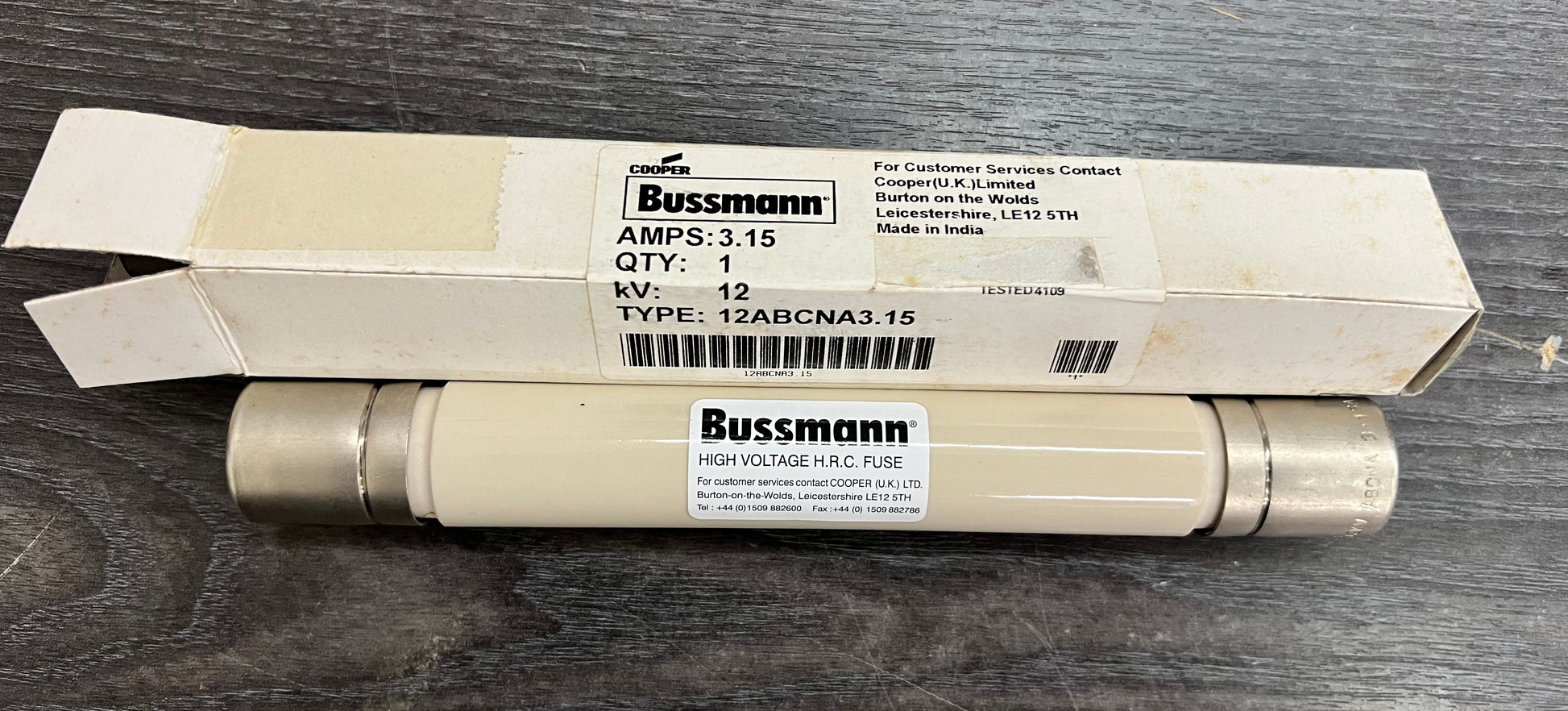

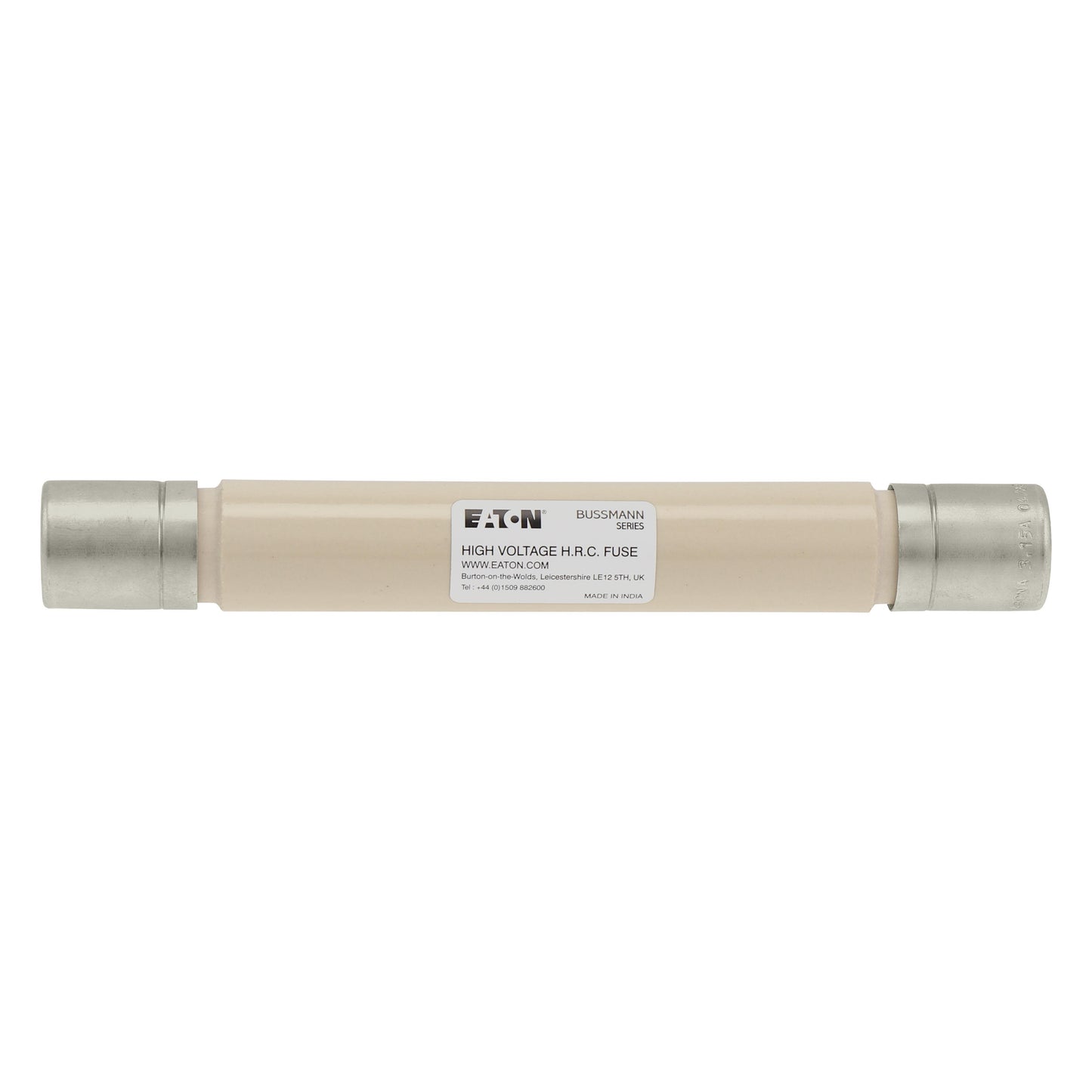

Eaton Bussmann 12ABCNA3-15 - Voltage Auxiliary Fuse Links - Medium Voltage - AC 12 kV
Couldn't load pickup availability
Voltage transformer fuse links, suitable for the protection of auxiliary transformers
AC 12 kV, 3.15 A with breaking capacity of 45 kA
Features:-
- Cool running, low watts loss and power dissipation
- High conductivity and low power loss
- 100% X-rayed to ensure highest standards are maintained
GENERAL SPECIFICATIONS
| PRODUCT NAME | Eaton Bussmann series medium auxiliary fuse |
| CATALOG NUMBER | 12ABCNA3-15 |
| EAN | 5027590027519 |
| UPC | 051712830607 |
| PRODUCT LENGTH | 195 mm |
| PRODUCT HEIGHT | 25.4 mm |
| PRODUCT WIDTH | 25.4 mm |
| PRODUCT WEIGHT | 245 g |
ELECTRICAL DATA
| AMPERAGE RATING | 3.15 A |
| VOLTAGE RATING | 12 kV |
| VOLTAGE TYPE | AC |
| PERFORMANCE CAT ACCORDING TO IEC60282-1 | Back-up |
| MIN. RATED FREQUENCY (Hz) | 62 Hz |
| CLASS | Class back-up |
PRODUCT SPECIFICATION
| FUSE INDICATOR | Non-indicating |
| CONSTRUCTION SIZE | 195 X 25.4 mm |
| STANDARD | IEC |
