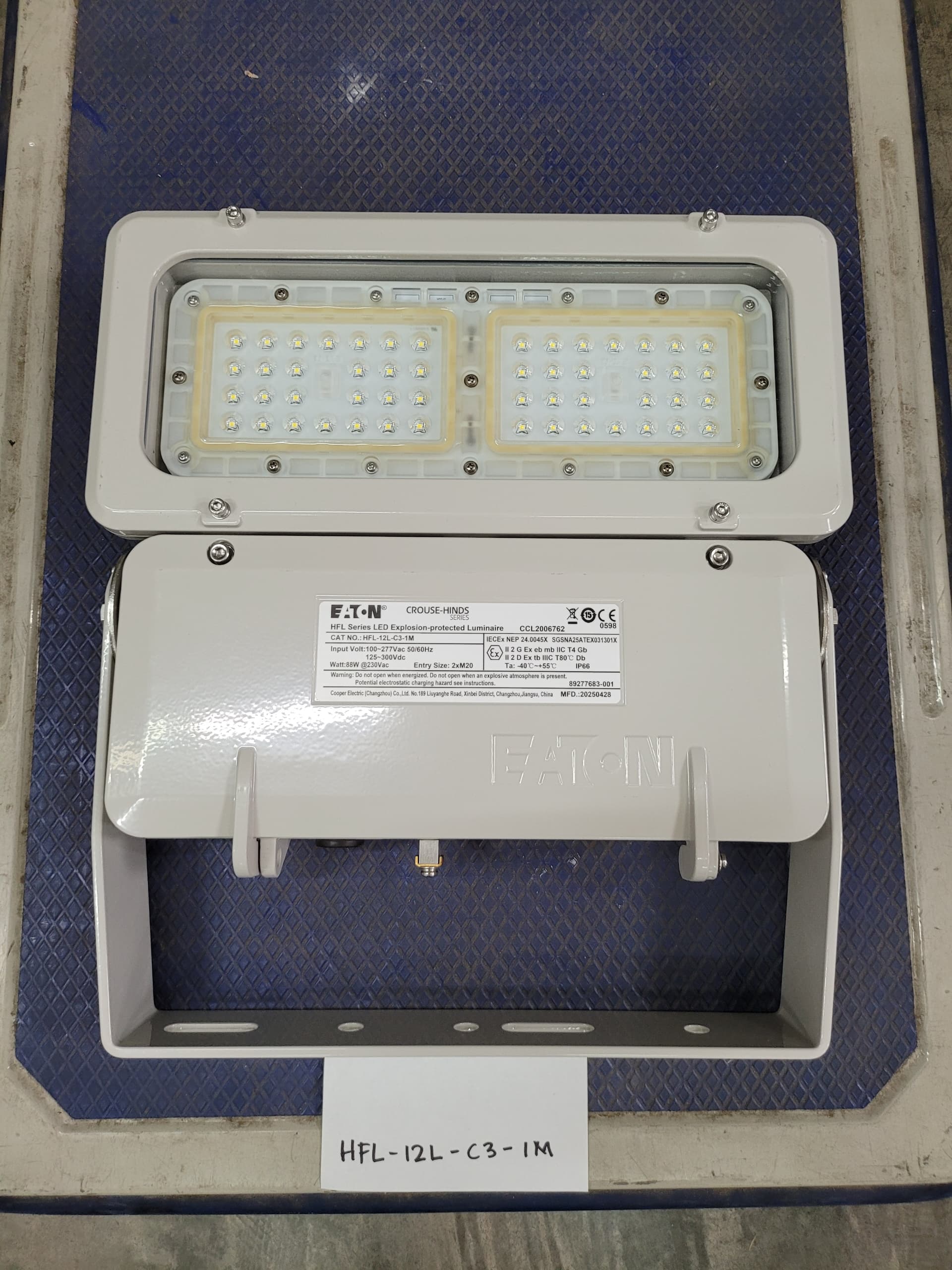

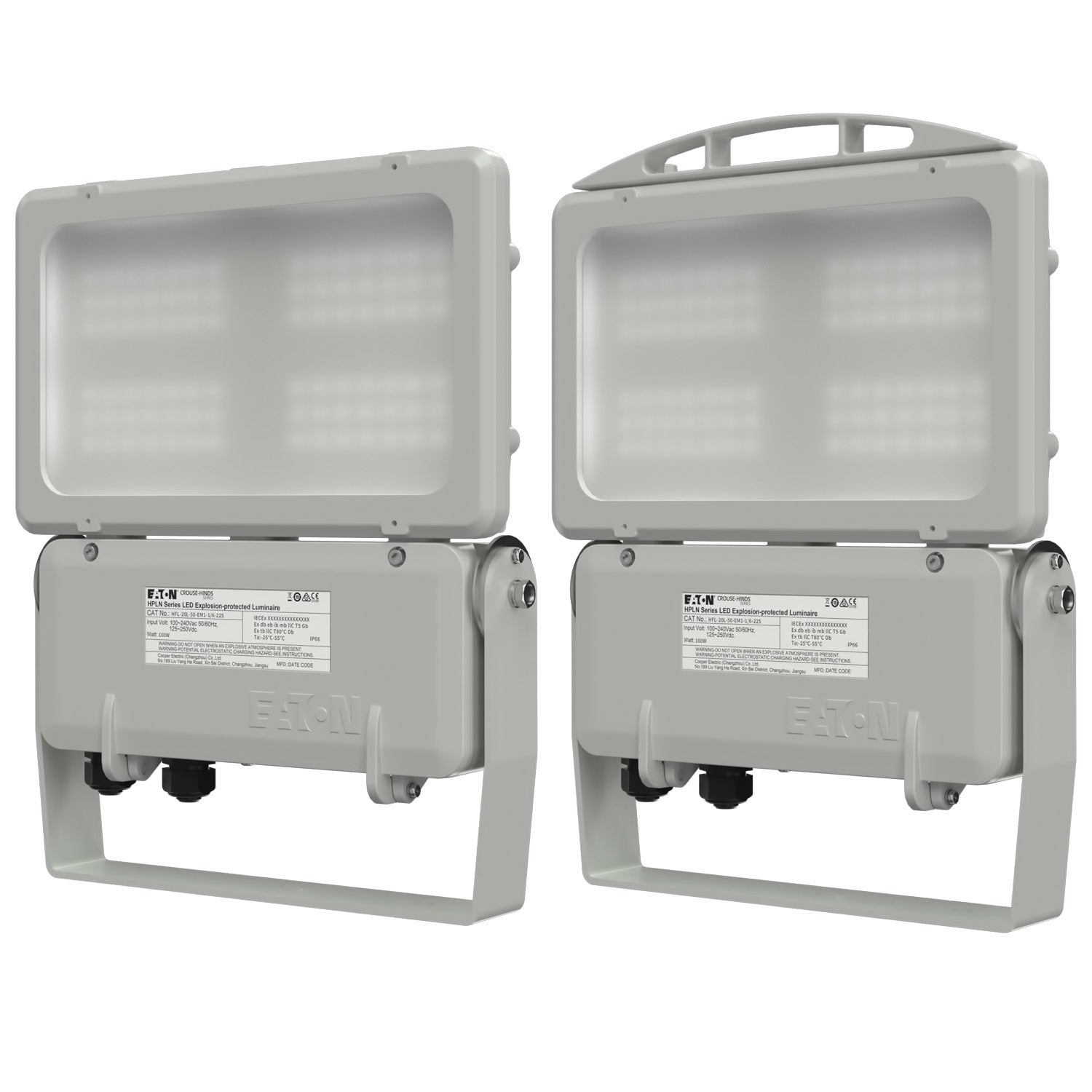

Eaton Crouse-Hinds HFL LED Hazardous Area Floodlights

Eaton Crouse-Hinds HFL is a series of hazardous areas LED floodlights for use in Zone 1/21 and 2/22 designed to provide up to 40L with outstanding lumen efficacy (145lm/w) and easy installation. The HFL features high efficacy, long life at ambient temperatures and robust marine grade housing to reduce total cost of ownership.

HFL LED floodlights are engineered to deliver high lumen output and maintenance-free long life in the toughest conditions making them highly reliable. For example, when comparing HFL-20L to a 400W conventional HID, there is a 65% reduction in energy costs and 77% in total cost of ownership.

Applications areas

• Locations requiring continuous and consistent light levels in extreme ambient temperatures
• Areas requiring frequent switching of lights
• Extremely corrosive, wet, dusty, hot/cold areas
• Where flammable vapours, gases, ignitable dusts/fibers are present
• Oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, platforms, loading docks, tunnels


Ordering information

*Tolerance +/- 10%

Product features

• High-efficient and energy saving LED module (Up to 145lm/w)
• Outstanding optical performance of 5700K with type V: 120° wide beam
• Strong water ingress protection of IP66 under 5G vibration
• Surge protection of 6kV

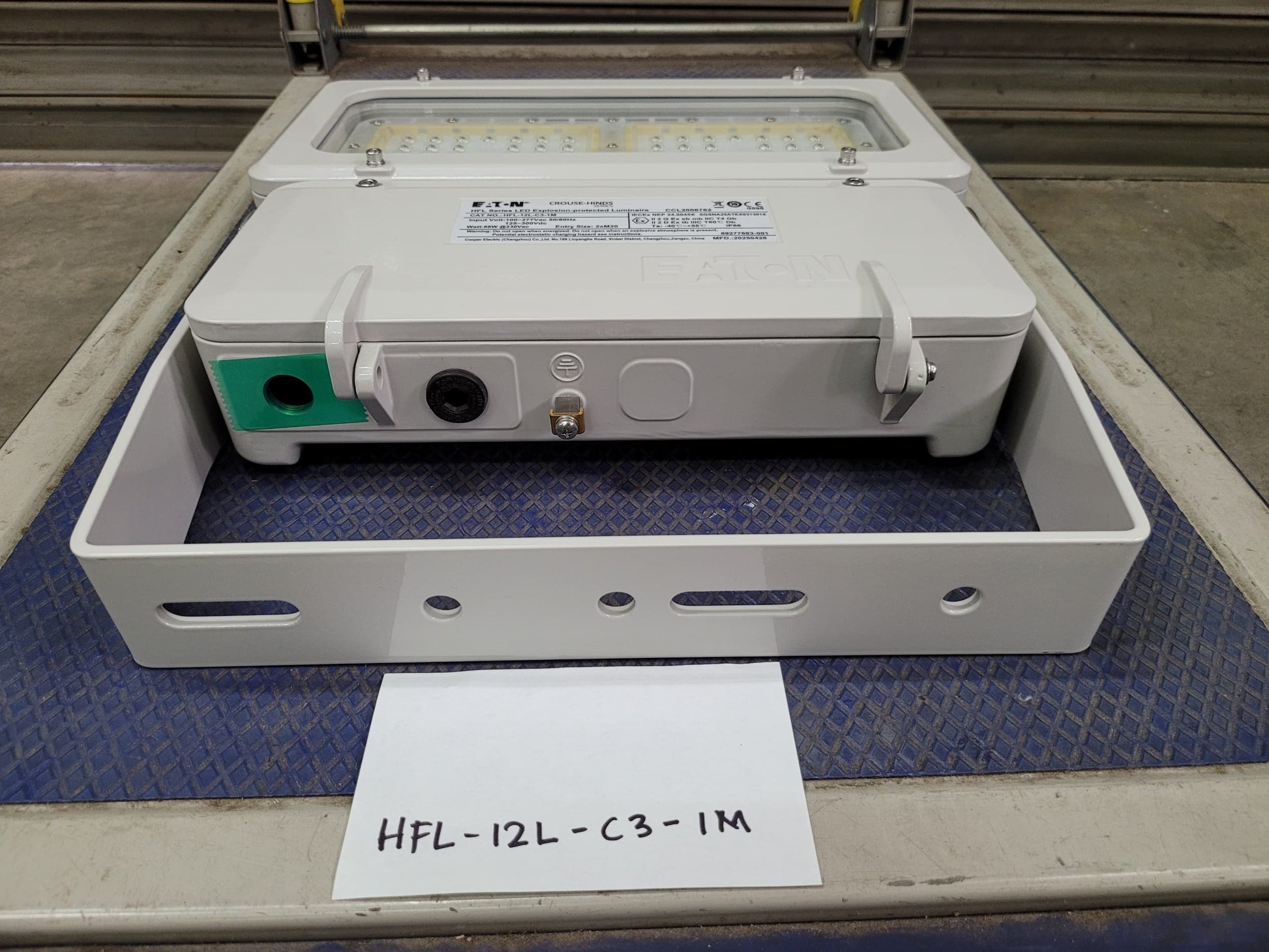

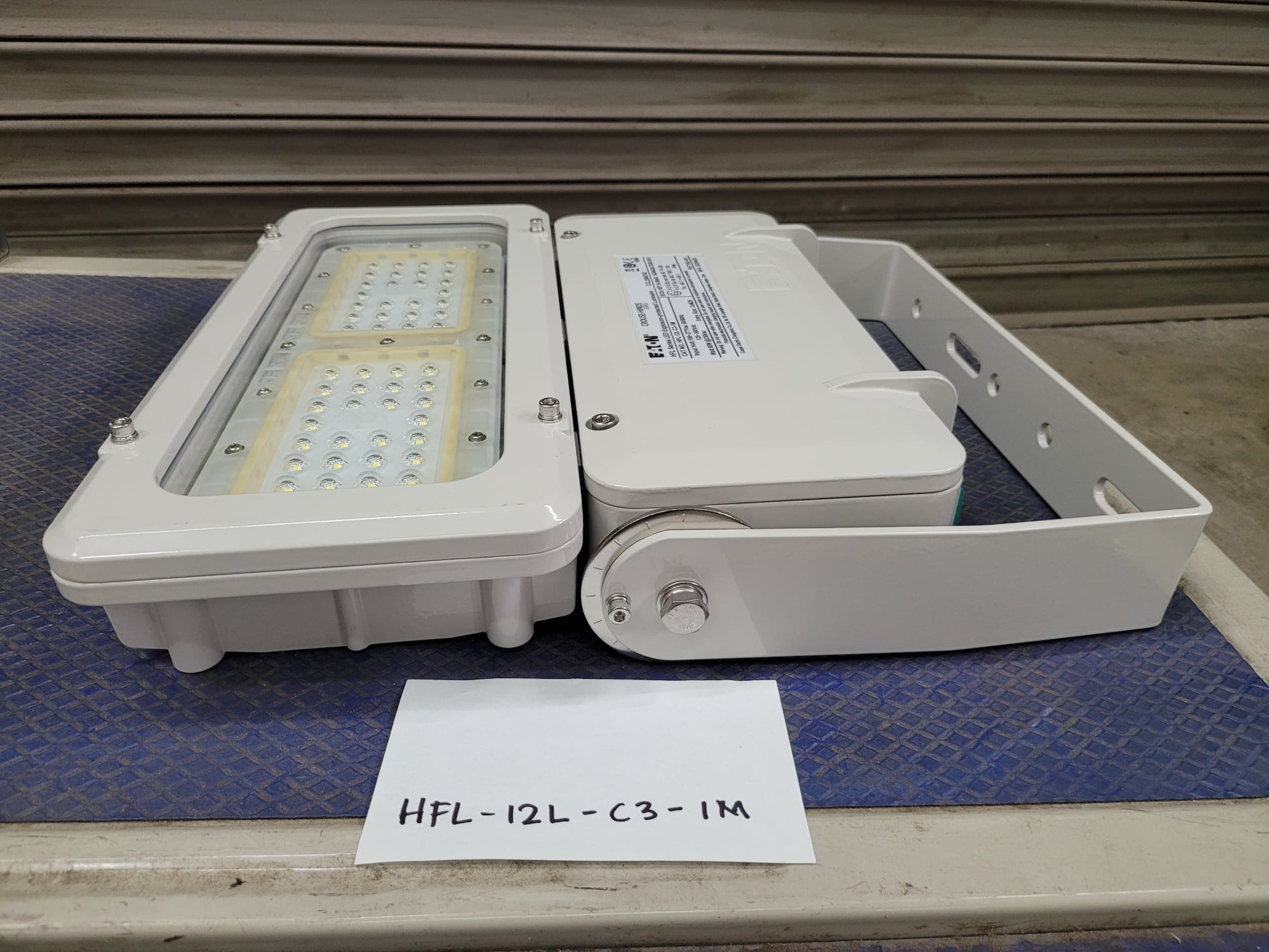

• Smart bracket mounting size design for ease of installation
• Instant on and cold temperature operation/no warm-up requirement
• Reliable environmental adaptability
  • Temperature range of -40°C to +55°C
  • Corrosion rating of C5-M
  • Impact rating of IK10
  • IP66
  • Anti0vibration DNV 2-4
• Materials:

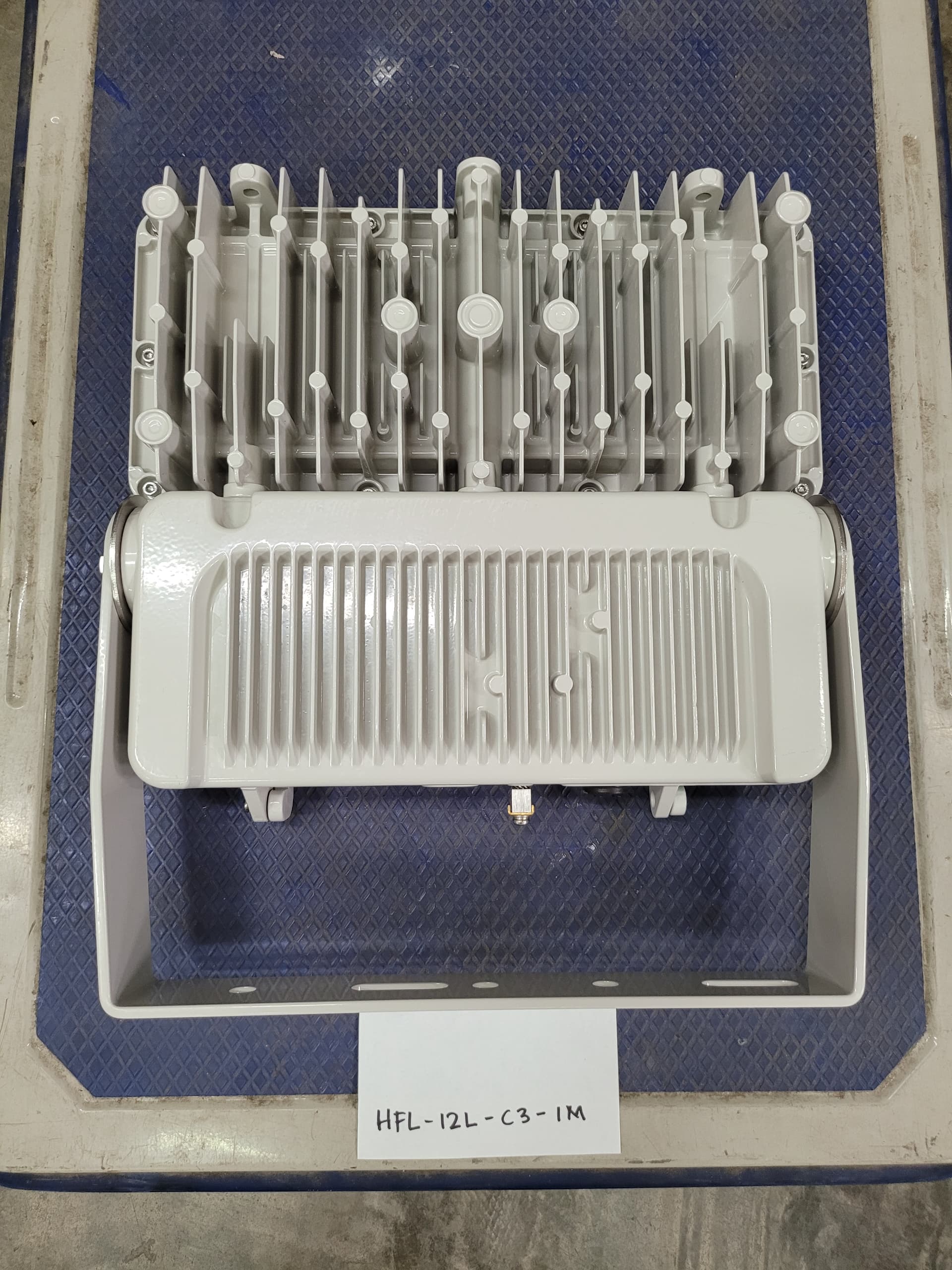

  • Enclosure: C5-M coated copper-free aluminium
  • Lens: Tempered and impact resistant glass
  • Gasket: Silicon
• Rated voltage: 100-277VAC  @ 50/60Hz / 125-300 VDC
• Entry size: 2xM20

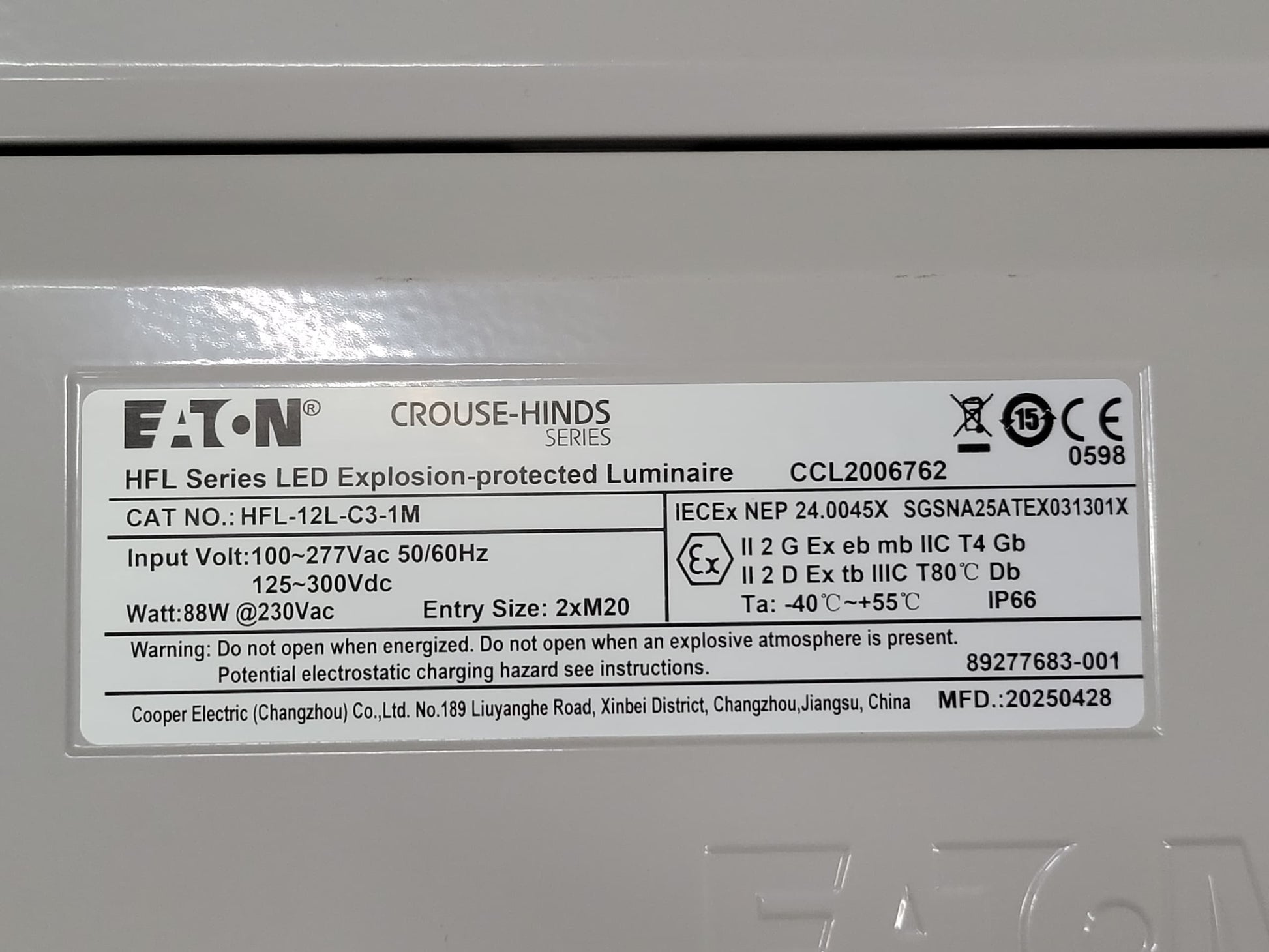

• IECEx marking: Ex db eb mb IIC T4...T3 Gb & Ex tb IIIC T80°C/85°C Db
• Certification
  • IECEx

Technical data

Certification from IECEx
