Eaton Crouse-Hinds

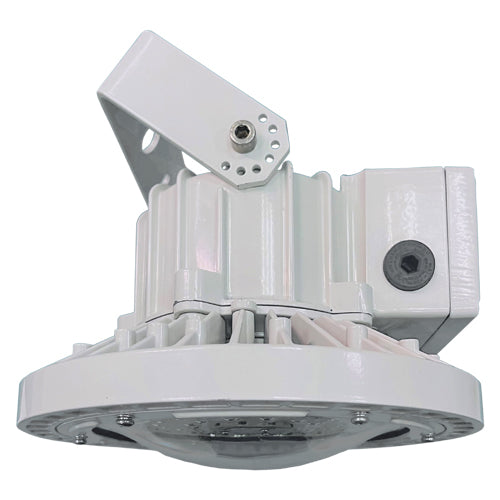

Eaton Crouse-Hinds HPL LED Hazardous Area Light Fixtures
Couldn't load pickup availability
Eaton Crouse-Hinds HPL is a series of industrial low bay lighting in LED techniques that is especially suited for specific lighting of machines, production areas and facilities that are in use in Zone 1/21 hazardous environments.
With a luminous flux up to 8,000lm, these light fittings can be used to replace comparable conventional light sources with an equivalent power consumption up to 175W. It's high efficient power LED module (more than 100 lumen/watt) enables up to 66% energy-cost savings compared to conventional HID lamps.
Applications areas
- Heavy Industry
- Chemical Industry
- Pharmaceutical Industry
- Marine Industry
- Water waste treatment
Ordering information
| Product type | Lamp | Light output | Description |
| HPL 3L | LED - 27W | 3,561 lm | LED pendant light fitting |
| HPL 5L | LED - 50W | 4,923 lm | LED pendant light fitting |
| HPL 8L | LED - 80W | 8,135 lm | LED pendant light fitting |
Product features
- High-efficient LED module
- Wide temperature range from -40°C ~ +50°C
- Compact and light weight design (5kg) for flexible applications
- Available in cold white CCT 5700K
- High efficient heatsink design for optimised temperature management
- Impact, anti-shock and vibration resistant
- Mercury and lead-free for optimal environment protection (Material: Powder coated light alloy)
- Toughened clear glass protective cover
- High degree of protection IP66 for harsh environments

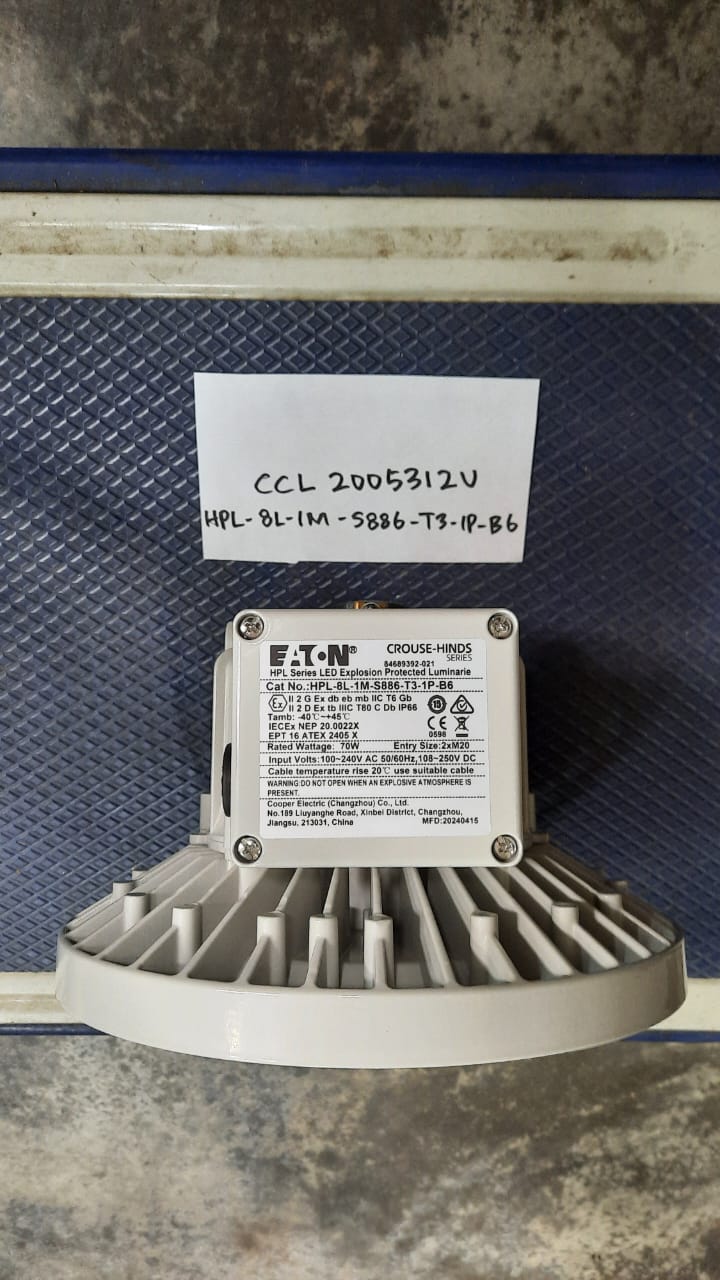

- IECEx marking: Ex db e mb IIC T6 & Ex tb III C T80°C Db IP66
- Rated voltage: 100-240VAC @ 50/60Hz / 108-250 VDC
- Driver lifetime: C10 ~100,000 h at ta = +25 °C
- LED lifetime: L70 ~100,000 h at ta = +25 °C
-
Enclosure drilling: Metal threaded 2 x M25 with 1 x plastic plug
- Certification
- IECEx
- EC-Type: ATEX
