Eaton Bussmann

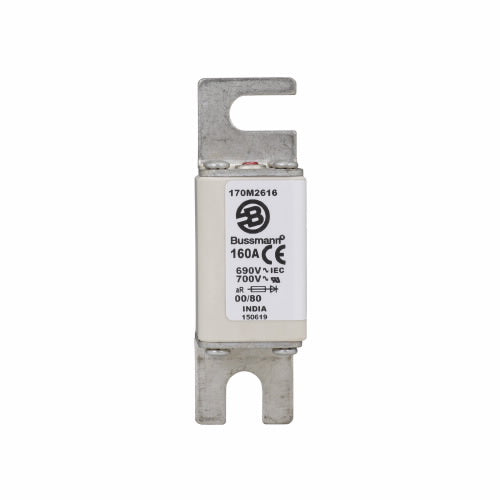

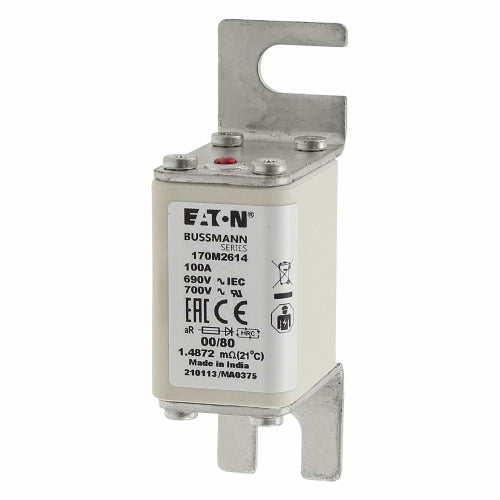

170M - Square Body size 000 and 00 - 690Vac (IEC), 10 to 400 A

690 Vac (IEC), 700 Vac/dc (UL), 10 to 400 A

Square body DIN 43653 bolted tags high speed fuses, for the protection of DC common bus, DC drives, power converters/ rectifiers and reduced rated voltage starters. Available with and without visual indicator, and Type T indicator for a microswitch.

Ratings

  • Volts
    • 690 Vac (IEC, size 000 and 00)
    • 700 Vac (UL, size 000; size 00 100-400 A only)
    • 700 Vdc (UL, size 000)
  • Amps 10-400 A
  • IR
    • 200 kA RMS Sym
    • 50 kA at 700 Vdc (size 000 only)

Operating class

  • gR - size 000 (10-63 A), size 00 (25-80 A)
  • aR - size 000 (>63 A), size 00 (>80 A)

Agency information

  • Designed and tested to IEC 60263 Part 4
  • UL Recognized, JFHR2, E125085
  • CSA Class 53787, File 1422-30 on size 000
  • CCC
  • CE

Technical datasheet
