Hawke

ICG/653/UNIV

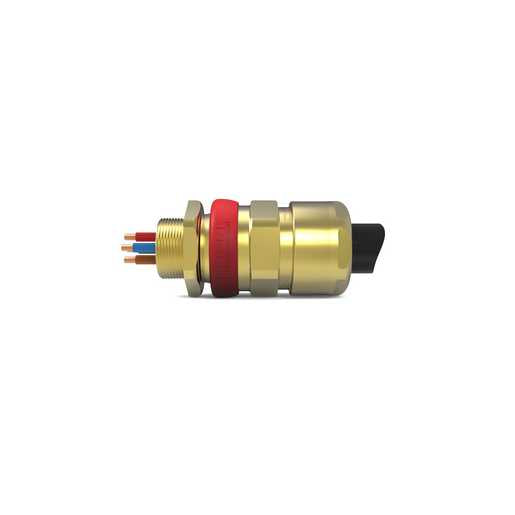

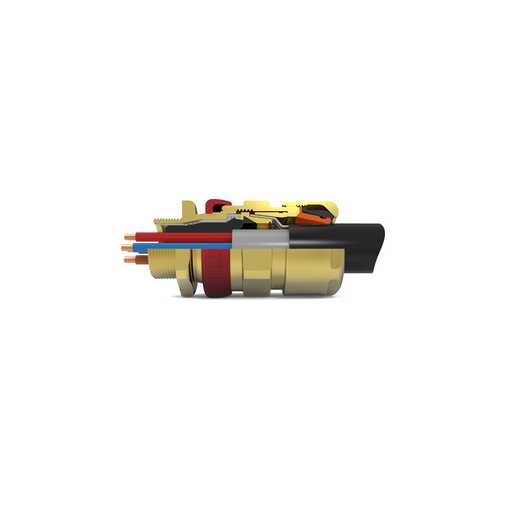

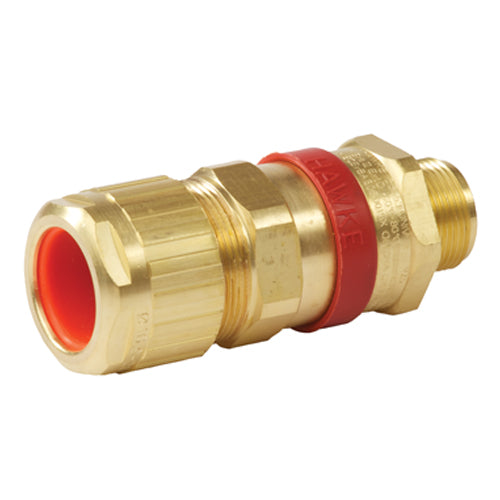

 The ICG/653/Universal Cable Gland is a Group II certified barrier cable gland suitable for installation in Zone 1/21 and Zone 2/22 hazardous areas.Dual Certified ATEX/IECEx (along with many more) for use in Increased Safety (Exe), Flameproof (Exd), Restricted Breathing (ExnR) and Dust (Ext) Zone protection concepts. Integral grounding ring suitable for single wire armour ‘W’, wire braid ‘X’ and tape armour ‘Z’. Suitable for both elastomer and plastic insulated cables, and particularly for cables which exhibit 'cold flow' characteristics on the inner sheath, are non effectively filled or contain hydroscopic fillers. The gland features a unique fully inspectable transparent elastomeric compound chamber The gland also provides an elastomeric seal on the cable inner sheath, and a low smoke, zero halogen IP and retention seal onto the cable outer sheath.

  • Metallic body construction
  • Fully Inspectable Elastomeric Compound Chamber
  • Available with either ExPress (liquid resin) or QSP (2-part hand mix compound), both with a cure time of 30 minutes
  • Reversible Armour Clamp - For all types of armour and braid
  • Patented Cable Gland Tightening Guide - Helps prevent damage caused by over tightening
  • Unique Rear Seal - Offering ultimate sealing over an extremely wide cable acceptance range
  • Inspectable Deluge Seal - Offering IP66, IP67, IP68 & IP69 Ingress Protection
  • Available with metric or NPT entry threadforms
Application Hazardous Areas Zone 1, Zone 21, Zone 2, Zone 22
Ingress Protection IP66, IP67, IP68 (30 metres for 7 days), IP69 to IEC/EN 60529 and NEMA 4X
Material Manufactured in Brass, Nickel Plated Brass or 316L Stainless Steel
Operating Temperature -60°C to +80 °C


Certified Listed
  • ATEX
  • IECEx
  • CSA
  • EAC
  • Inmetro
  • KCs
  • PESO
  • CNEx
Hazardous Rating(s)
  • Flameproof Exdb IIC Gb, Increased Safety Exeb IIC Gb, Dust Extb IIIC Db Ex II 2 GD
  • Flameproof AExd IIC Gb, Increased Safety AExe IIC Gb and Dust AExtD Zone 21
  • Deluge Protection to DTS01
